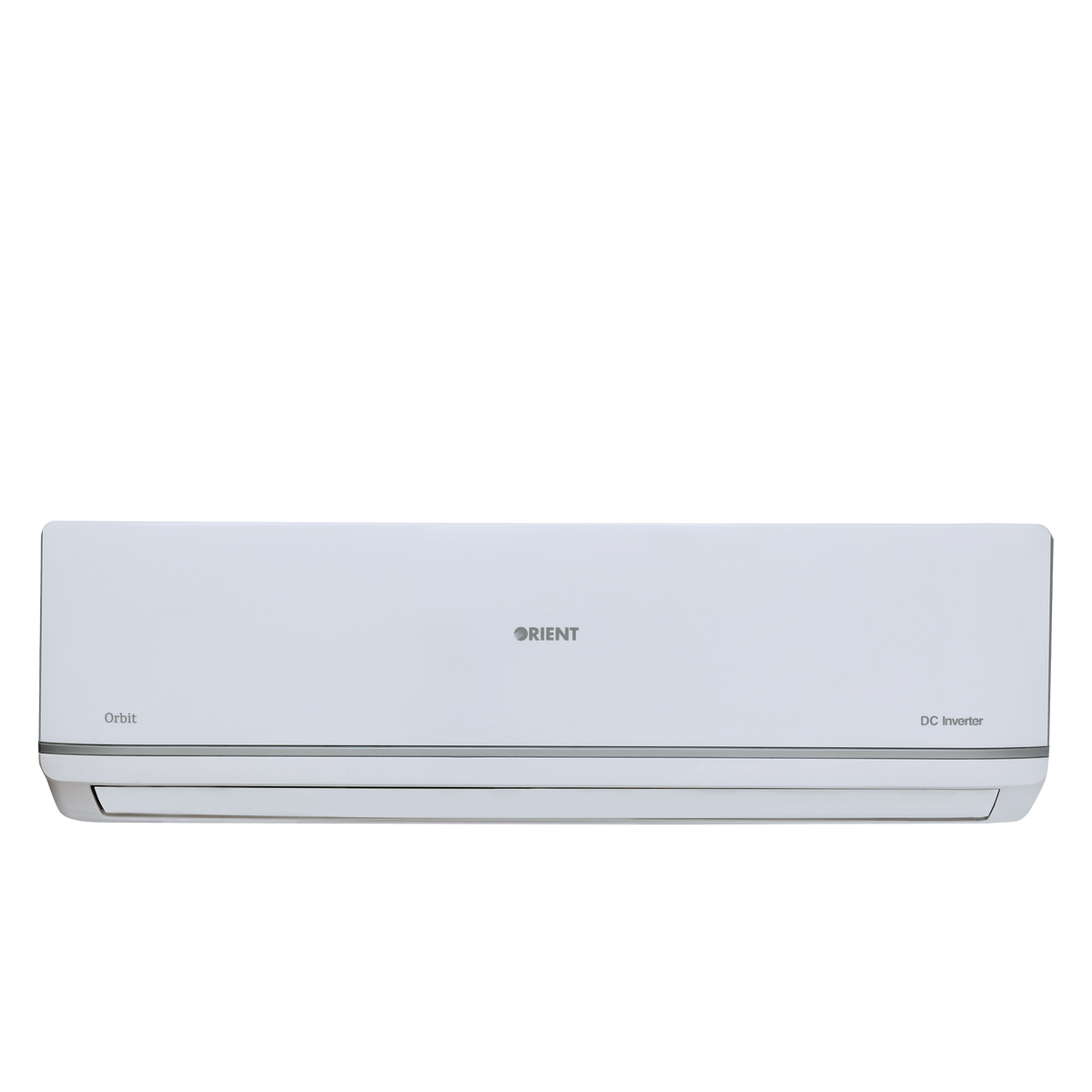

1 Ton ORBIT DC Inverter
1 Ton ORBIT DC Inverter
Couldn't load pickup availability
Description
Orbit is a monster from the Planet Series. With Catechin filters, instant cooling & heating are features of the air conditioner. The gold fin evaporator keeps the product rust-free ensuring maximum life and the low voltage operation & UPS/Generator compatibility make sure that you are comfortable even during low voltage or power outages. With 60% energy saving, the air conditioner is light on the pocket while still heavy on the quality.
[description end] [keyfeature start]Features
- Japanese PCB Kit
- 4D air throw
- Turbo mode
- Low voltage operation
- For All Weathers Heat & Cool
- Gold Fin - Anti Rust Coating
- 100 % Pure copper
- Low Noise Operations
- Catechin filters
Specifications
| RATED CAPACITY (COOLING) | 12000 Btu/h |
|---|---|
| RATED CAPACITY (HEATING) | 12000 Btu/h |
| RATED POWER CONSUMPTION (COOLING) | 1100 W |
| RATED POWER CONSUMPTION (HEATING) | 1100 W |
| RUNNING CURRENT (COOLING) |
4.8 A |
| RUNNING CURRENT (HEATING) |
4.8 A |
| SEER (COOLING) | 3.6 |
| SEER (HEATING) | 3.6 |
| RATED VOLTAGE | 220-240V |
| RATED FREQUENCY | 1PH, 50HZ |
| MAX.INPUT CURRENT | 9.5 Amps |
| MAX.INPUT POWER | 2050 Watt |
| AIR FLOW: | 560 m3/h |
| SOUND LEVEL: | 43.8 dB(A) |
| NET WEIGHT | 8.3 KG |
| NET DIMENSION (W x D x H ) | 805 x 194 x 285 mm |
| PACKING DIMENSION (W x D x H ) | 870 x 270 x 360 mm |
| ID UNIT RESISTANCE CLASS | IPX0 |
| OUTDOOR UNIT MODEL | PLANET 12G OUTDOOR |
| RATED CAPACITY (COOLING) | 12000 Btu/h |
| RATED CAPACITY (HEATING) | 12000 Btu/h |
| RATED POWER CONSUMPTION (COOLING) | 1100 W |
| RATED POWER CONSUMPTION (HEATING) | 1100 W |
| RUNNING CURRENT (COOLING) |
7.5 A |
| RUNNING CURRENT (HEATING) |
6.7 A |
| SEER (COOLING) | 3.6 |
| SEER (HEATING) | 3.6 |
| RATED VOLTAGE | 220-240V |
| RATED FREQUENCY | 1PH, 50HZ |
| MAX.INPUT CURRENT | 13.5 Amps |
| MAX.INPUT POWER | 2650 Watt |
| REFRIGERANT | R-410A/760 Grams |
| HI PRESSURE | 4.2 Mpa |
| LOW PRESSURE | 1.5 Mpa |
| AIR FLOW: | |
| SOUND LEVEL: | 53 dB(A) |
| NET WEIGHT | 35.2KG |
| NET DIMENSION (W x D x H ) | 800 x 333 x 554 mm |
| PACKING DIMENSION (W x D x H ) | 920 x 390 x 615 mm |
| OD UNIT RESISTANCE CLASS | IP24 |
| Connecting Wire | No |
Japanese PCB Kit
Orient DC Inverter AC is equipped with new and improved Japanese PCB Kit for better protection from moisture for longer life and durability.
4D Air Throw
4D Air Throw of Orient DC Inverter AC provides effective heating & cooling by spreading air in all directions, making sure the target temperature is achieved rapidly.
Gold Fin Anti-Rust Coating
Orient DC Inverter AC comes with protective Gold Fin Anti-Rust coating that prevents from corrosion caused by moisture.
